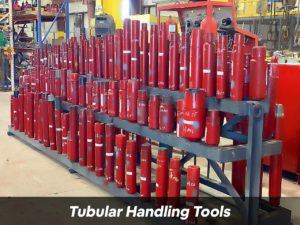

Drill Pipe, Tubing & Handling Tools
Patterson provides a large inventory of standard and premium rental Tubulars. All with specific serialized numbers, NDT inspected prior to every job, and with our in-house Patterson Inspection Application (PIA) software capturing excellent history of usage.
- Drill Pipe: Sizes; 2 3/8” – 5 1/2”, Types; Bottleneck or Slim Hole, Grades; X-95, G-105 & S-135, Connections; All API, HT, XT, XTM, DS & Delta
- (Note: Available, Internally Coated & Wear Knot.)
- Drill Collars: Sizes; 3 1/2” – 10”; Types; Spiral or Plain/Slick, Connections; All API, HT, XT, XTM, DS & Delta
- Hevi-Wate Drill Pipe: Sizes; 2 7/8” – 5 1/2”; Types; Conventional or Spiral-Wate, Connections; All API, HT, XT, XTM, DS & Delta
- Tubing: Sizes; 1” – 4 1/2”, Grades; L-80, N-80, T-95, P-110 & S-135, Connections; 8rd, CS, & PH-6
- Bit Subs
- Boot / Junk Baskets
- Casing Scrapers
- Crossover Subs
- Drifts – Teflon, Steel, Rabbits
- Float Subs
- Kellys, Kelly Bushings & Rollers
- Kelly Subs
- Inside BOP Valve
- Rotary Slips
- Safety Clamp
- Mud Buckets
- Mule Shoes
- Pipe Racks
- Pump In & Pump Down Subs
- Pup Joints
- Torque Gauges
- Wear Subs
- Safety Valve
- TIW/Kelly Valve
- Spider
* Above list does not include all tools, please contact Patterson for items currently not listed.
Specs Sheet
| Description | OD | Connection | Weight Lbs/FT | Grade | Range | TJ (OD) | TJ (ID) | TJ Material Yield Strength | Max Torque (New) | Tube Tensile (Premium) |
|---|---|---|---|---|---|---|---|---|---|---|
| Drill Pipe, 2 3/8" BN 6.65#, S-135 IF | 2 3/8" | NC-26 (2 3/8" IF) | 6.65 | S-135 | II | 3 3/8" | 1 3/4" | 3,900 ft/lbs | 294,878 lbs | |
| Drill Pipe, 2 7/8" BN 10.40#, S-135 AOH | 2 7/8" | 2 7/8" AOH | 10.4 | S-135 | II | 3 7/8" | 2 5/32" | 4,800 ft/lbs | 276,400 lbs | |
| Drill Pipe, 2 7/8" BN 10.40#, S-135 IF | 2 7/8" | NC-31 (2 7/8" IF) | 10.4 | S-135 | II | 4 1/8" | 2" | 7,100 ft/lbs | 420,274 lbs | |
| Drill Pipe, 2 7/8" SH 10.40# X-95 HT-PAC | 2 7/8" | 2 7/8" HT-PAC | 10.4 | X-95 | II | 3 1/8" | 1 1/2" | 5,100 ft/lbs | 218,400 lbs | |
| Drill Pipe, 3 1/2" BN 13.30# S-135 3 1/2" HT-38 | 3 1/2" | HT-38 | 13.3 | S-135 | II | 4 7/8" | 2 9/16" | 17,700 ft/lbs | 610,248 lbs | |
| Drill Pipe, 3 1/2" BN 13.30# S-135 3 1/2" IF | 3 1/2" | NC-38 (3 1/2" IF) | 13.3 | S-135 | II | 4 7/8" | 2 9/16" | 10,700 ft/lbs | 610,248 lbs | |
| Drill Pipe, 3 1/2" BN 15.50# X-95 3 1/2" IF | 3 1/2" | NC-38 (3 1/2" IF) | 15.5 | X-95 | II | 4 3/4" | 2 9/16" | 9,600 ft/lbs | 610,248 lbs | |
| Drill Pipe, 4”, SH, 14# S-135, DS-38 Wear Knot | 4" | DS-38 | 14 | S-135 | II | 4 7/8" | 2 7/16" | 135Kpsi | 19,300 ft/lbs | 748,804 lbs |
| Drill Pipe, 4.0" BN, 14# S-135, NC-40 | 4" | NC-40 (4"FH) | 14 | S-135 | II | 5 1/4" | 2 11/16" | 13,500 ft/lbs | 729,816 lbs | |
| Drill Pipe, 4.0" BN, 14# S-135, XT-39 | 4" | XT-39 | 14 | II | 4 7/8" | 2 11/16" | 21,200 ft/lbs | 647,200 lbs | ||
| Drill Pipe, 4.0" SH, 14# S-135, DS-38 | 4" | DS-38 | 14 | S-135 | II | 4 7/8" | 2 7/16" | 17,100 ft/lbs | 665,614 lbs | |
| Drill Pipe, 4 1/2" BN, 16.60# S-135, XH | 4 1/2" BN | NC-46 (4 1/2" XH) | 16.6 | S-135 | II | 6 1/4" | 3" | 20,500 ft/lbs | 985,496 lbs | |
| Drill Pipe, 4 1/2" BN, 16.60# S-135T, XTM-43 | 4 1/2" BN | XTM-43 | 16.6 | S-135T | II | 5 1/4" | 3" | 23,500 ft/lbs | 718,630 lbs | |
| Drill Pipe, 4 1/2" BN, 20.0# S-135T, XTM-43 | 4 1/2" BN | XTM-43 | 20 | S-135T | II | 5 1/4" | 3" | 23,500 ft/lbs | 718,630 lbs | |

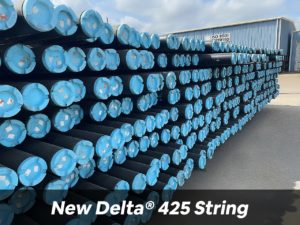

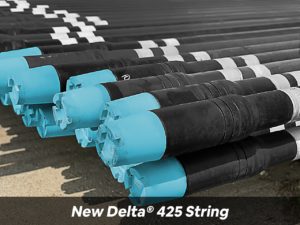

| Drill Pipe, 4 1/2" SH, 16.60# S-135, Delta 425 ™ | 4 1/2" SH | Delta 425 ™ | 16.6 | S-135 | II | 5 3/8" | 3" | 35,000 ft/lbs | 786,353 lbs | |
| Drill Pipe, 4 1/2" SH, 16.60# S-135, DS-42 | 4 1/2" SH | DS-42 | 16.6 | S-135 | II | 5 1/4" | 2 13/16" | 30,000 ft/lbs | 903,400 lbs | |
| Drill Pipe, 5" BN, 19.5# GCY-105, NC-50 | 5" BN | NC-50 (4 1/2" IF) | 19.5 | GCY-105 | II | 6 5/8" | 3 1/4" | 30,730 ft/lbs | 1,192,860 lbs | |
| Drill Pipe, 5" BN, 19.5# S-135, NC-50 (4 1/2" IF) | 5" BN | NC-50 (4 1/2" IF) | 19.5 | S-135 | II | 6 5/8" | 3 1/4" | 30,700 ft/lbs | 1,005,040 lbs | |
| Drill Pipe, 5 1/2" BN, 24.70# S-135, XT-57 | 5 1/2" BN | XT-57 | 24.7 | S-135 | II | 7" | 4 1/4" | 56,600 ft/lbs | 1,136,178 lbs |
| Description | OD | Connection | TJ (OD) | TJ (ID) | Max MU Torque (New) | Tensile Yield New | Weight/Jt | Type |
|---|---|---|---|---|---|---|---|---|
| HW Drill Pipe, 2 7/8" BN, 2 7/8" AOH | 2 7/8" BN | 2 7/8" AOH | 3 7/8" | 2 1/8" | 5,000 ft/lbs | 333,000 lbs | 490 lbs | Spiral |
| HW Drill Pipe, 3 1/2" BN, HT-38 | 3 1/2" BN | HT-38 | 4 7/8" | 2 1/4" | 20,500 ft/lbs | 310,500 lbs | 713 lbs | Slick |
| HW Drill Pipe, 3 1/2" BN, 3 1/2" IF | 3 1/2" BN | 3 1/2" IF | 4 7/8" | 2 1/4" | 13,700 ft/lbs | 310,500 lbs | 713 lbs | Slick |
| HW Drill Pipe, 3 1/2" BN, 3 1/2" IF | 3 1/2" BN | 3 1/2" IF | 4 7/8" | 2 1/4" | 13,700 ft/lbs | 310,500 lbs | 828 lbs | Spiral |
| HW Drill Pipe, 4" BN, DS-38 | 4" BN | 4" DS-38 | 5" | 2 9/16" | 15,400 ft/lbs | 407,550 lbs | 890 lbs | Slick |
| HW Drill Pipe, 4" BN, 4" FH | 4" BN | 4" FH | 5 1/4" | 2 9/16" | 16,600 ft/lbs | 407,550 lbs | 890 lbs | Slick |
| HW Drill Pipe, 4" BN, XT-39 | 4" BN | 4" XT-39 | 4.875" | 2.5625" | 22,200 ft/lbs | 640,100 lbs | 881 lbs | Spiral |
| HW Drill Pipe, 4" BN, XT-39 | 4" BN | XT-39 | 4 7/8" | 2 9/16" | 22,200 ft/lbs | 407,550 lbs | 881 lbs | Slick |
| HW Drill Pipe, 4 1/2" SH, DS-42 | 4 1/2" SH | DS-42 | 5.313" | 2.813" | 24,410 ft/lbs | 548,000 lbs | 1,230 lbs | Slick |
| HW Drill Pipe, 4 1/2" SH, Delta 425 | 4 1/2" | Delta 425 | 5.250” | 2.750” | 39,200 ft/lbs | 548,000 lbs | 1,207 lbs | Slick |
| HW Drill Pipe, 4 1/2" BN, 4 1/2" XH | 4 1/2" BN | 4 1/2" XH | 6 1/4" | 2 3/4" | 26,600 ft/lbs | 548,000 lbs | 1,230 lbs | Slick |
| HW Drill Pipe, 4 1/2" BN, 4 1/2" XH | 4 1/2" BN | 4 1/2" XH | 6 1/4" | 2 3/4" | 26,600 ft/lbs | 548,060 lbs | 1,412 lbs | Spiral |
| HW Drill Pipe, 5" BN, 4 1/2" IF | 5" BN | 4 1/2" IF | 6 5/8" | 3" | 34,500 ft/lbs | 691,185 lbs | 1,480 lbs | Slick |
| HW Drill Pipe, 5" BN, 4 1/2" IF | 5" BN | 4 1/2" IF | 6 5/8" | 3" | 26,800 ft/lbs | 691,150 lbs | 1,650 lbs | Spiral |
| HW Drill Pipe, 5 1/2" BN, XT-57 | 5 1/2" BN | XT-57 | 7" | 4" | 63,700 ft/lbs | 799,800 lbs | 2,024 lbs | Spiral |
| Description | OD | Connection | TJ (ID) | Weight/Jt | Max MU Torque (New) | Type |
|---|---|---|---|---|---|---|
| Drill Collar, 3 1/8", Spiral, 2 3/8" Regular | 3.125" | 2 3/8" Reg | 1.125" | 660 lbs | 3,300 ft/lbs | Spiral |
| Drill Collar, 3 1/8", Plain, 2 3/8" Regular | 3.125" | 2 3/8" Reg | 1.250" | 660 lbs | 3,300 ft/lbs | Plain |
| Drill Collar, 3 1/8", Spiral, 2 7/8" HT-PAC | 3 1/8" | 2 7/8" HT-PAC | 1 1/4" | 600 lbs | 5,600 ft/lbs | Spiral |
| Drill Collar, 3 1/8", Plain, 2 7/8" HT-PAC | 3 1/8" | 2 7/8" HT-PAC | 1 1/2" | 681 lbs | 4,700 ft/lbs | Plain |
| Drill Collar, 3 1/2", Spiral, 2 3/8" IF | 3 1/2" | 2 3/8" IF | 1 1/2" | 769 lbs | 5,100 ft/lbs | Spiral |
| Drill Collar, 3 1/2", Plain, 2 3/8" IF | 3 1/2" | 2 3/8" IF | 1 3/4" | 801 lbs | 4,100 ft/lbs | Plain |
| Drill Collar, 4 3/4", Spiral, 3 1/2" IF | 4 3/4" | 3 1/2" IF | 2 1/4" | 1,348 lbs | 11,000 ft/lbs | Spiral |
| Drill Collar, 4 3/4", Plain, 3 1/2" IF | 4 3/4" | 3 1/2" IF | 2 1/4" | 1,404 lbs | 11,000 ft/lbs | Plain |
| Drill Collar, 4 3/4" Spiral, HT-38 | 4 3/4" | HT-38 | 2 1/4" | 1,348 lbs | 16,700 ft/lbs | Spiral |
| Drill Collar, 4 3/4" Plain, HT-38 | 4 3/4" | HT-38 | 2 1/4" | 1,404 lbs | 16,700 ft/lbs | Plain |
| Drill Collar, 4 7/8" Spiral, XT-39 | 4 7/8" | XT-39 | 2 1/4" | 1,571 lbs | 22,400 ft/lbs | Spiral |
| Drill Collar, 4 7/8" Plain, XT-39 | 4 7/8" | XT-39 | 2 1/4" | 1,571 lbs | 22,400 ft/lbs | Plain |
| Drill Collar, 5 1/4" Spiral, 4" FH | 5 1/4" | 4" FH | 2 1/4" | 1,890 lbs | 16,800 ft/lbs | Spiral |
| Drill Collar, 5 1/4" Plain, 4" FH | 5 1/4" | 4" FH | 2 1/4" | 1,890 lbs | 16,800 ft/lbs | Plain |
| Drill Collar, 6 1/4" Spiral, 4 1/2" XH | 6 1/4" | 4 1/2" XH | 2 13/16" | 2,413 lbs | 24,700 ft/lbs | Spiral |
| Drill Collar, 6 1/4" Plain, 4 1/2" XH | 6 1/4" | 4 1/2" XH | 2 13/16" | 2,514 lbs | 24,700 ft/lbs | Plain |
| Drill Collar, 6 1/2" Spiral, 4 1/2" IF | 6 1/2" | 4 1/2" IF | 2 13/16" | 2,673 lbs | 32,600 ft/lbs | Spiral |
| Drill Collar, 6 1/2" Plain, 4 1/2" IF | 6 1/2" | 4 1/2" IF | 2 13/16" | 2,784 lbs | 32,600 ft/lbs | Plain |
| Drill Collar, 8" Spiral, 6 5/8" H-90 | 8" | 6 5/8" H-90 | 2 13/16" | 4,343 lbs | 55,700 ft/lbs | Spiral |
| Drill Collar, 8" Plain, 6 5/8" H-90 | 8" | 6 5/8" H-90 | 2 13/16" | 4,524 lbs | 55,700 ft/lbs | Plain |
| Drill Collar, 8" Spiral, NC-56 | 8" | NC-56 | 2 13/16" | 4,343 lbs | 53,000 ft/lbs | Spiral |
| Drill Collar, 8" Plain, NC-56 | 8" | NC-56 | 2 13/16" | 4,343 lbs | 53,000 ft/lbs | Plain |
| Drill Collar, 9 1/2" Spiral, 7 5/8" Reg LT | 9 1/2" | 7 5/8" Reg LT | 3" | 6,250 lbs | 97,500 ft/lbs | Spiral |
| Drill Collar, 9 1/2" Plain, 7 5/8" Reg LT | 9 1/2" | 7 5/8" Reg LT | 3" | 6,510 lbs | 97,500 ft/lbs | Plain |
| Drill Collar, 10" Spiral, 7 5/8" Reg LT | 10" | 7 5/8" Reg LT | 3" | 6,998 lbs | 97,500 ft/lbs | Spiral |
| Drill Collar, 10" Plain, 7 5/8" Reg LT | 10" | 7 5/8" Reg LT | 3" | 7,290 lbs | 97,500 ft/lbs | Plain |
| Description | OD | Connection | Weight Lbs/FT | Grade | Hardband | TJ (OD) | TJ (ID) | TJ Material Yield Strength | Max Torque (New) | Tube Tensile (Premium) |
|---|---|---|---|---|---|---|---|---|---|---|
| Tubing, 1" P-110, 2.25#, CS Hydril | 1" | 1" CS Hyd | 2.25 lbs/ft | P-110 | N | 1.60" | 0.864" | 500 ft/lbs | 56,000 lbs | |
| Tubing, 1" T-95, 2.25#, CS Hydril | 1" | 1" CS Hyd | 2.25 lbs/ft | T-95 | N | 1.60" | 0.864" | 500 ft/lbs | 48,800 lbs | |
| Tubing, 1 1/4" P-110, 3.02#, CS Hydril | 1 1/4" | 1 1/4" CS Hyd | 3.02 lbs/ft | P-110 | N | 1.927" | 1.219" | 750 ft/lbs | 77,600 lbs | |
| Tubing, 1 1/4" S-135, 3.02#, CS Hydril | 1 1/4" | 1 1/4" CS Hyd | 3.02 lbs/ft | S-135 | N | 1.927" | 1.218" | 750 ft/lbs | 95,200 lbs | |
| Tubing, 1 1/4" T-95, 3.02#, CS Hydril | 1 1/4" | 1 1/4" CS Hyd | 3.02 lbs/ft | T-95 | N | 1.927" | 1.218" | 750 ft/lbs | 67,200 lbs | |
| Tubing, 1 1/2" P-110, 3.64#, CS Hydril | 1 1/2" | 1 1/2" CS Hyd | 3.64 lbs/ft | P-110 | N | 2.162" | 1.44" | 1,000 ft/lbs | 93,600 lbs | |
| Tubing, 1 1/2" S-135, 3.64#, CS Hydril | 1 1/2" | 1 1/2" CS Hyd | 3.64 lbs/ft | S-135 | N | 2.162" | 1.44" | 1,000 ft/lbs | 115,200 lbs | |
| Tubing, 1 1/2" T-95, 3.64#, CS Hydril | 1 1/2" | 1 1/2" CS Hyd | 3.64 lbs/ft | T-95 | N | 2.162" | 1.44" | 1,000 ft/lbs | 80,800 lbs | |
| Tubing, 2 3/8" P-110, 4.70#, 8RD | 2 3/8" | 8RD | 4.70 lbs/ft | P-110 | N | 3.063" | 1.995" | 2,980 ft/lbs | 114,400 lbs | |
| Tubing, 3 1/2" P-110, 9.3#, CS Hydril | 3 1/2" | CS Hydril | 9.3 lbs/ft | P-110 | N | 3.915" | 2.92" | 3,800 ft/lbs | ||
| Tubing, 2 3/8" P-110, 5.95#, PH-6 Hydril Type, Hardbanded | 2 3/8" | PH-6 | 5.95 lbs/ft | P-110 | Y | 2.906" | 1.805" | 3,375 ft/lbs | ||
| Tubing, 2 3/8" P-110, 5.95#, PH-6 Hydril Type, Non-Hardbanded | 2 3/8" | PH-6 | 5.95 lbs/ft | P-110 | N | 2.906" | 1.805" | 3,375 ft/lbs | ||
| Tubing, 2 3/8" S-135, 5.95#, PH-6 Hydril Type, Non-Hardbanded | 2 3/8" | PH-6 | 5.95 lbs/ft | P-110 | N | 2.906" | 1.805" | 3,375 ft/lbs | ||
| Tubing, 2 7/8" L-80, 7.90#, PH-6 Hydril Type, Non-Hardbanded | 2 7/8" | PH-6 | 7.90 lbs/ft | L-80 | N | 3.438" | 2.265" | 3,750 ft/lbs | ||
| Tubing, 2 7/8" P-110, 7.90#, PH-6 Hydril Type, Hardbanded | 2 7/8" | PH-6 | 7.90 lbs/ft | P-110 | Y | 3.438" | 2.265" | 4,375 ft/lbs | ||
| Tubing, 2 7/8" P-110, 7.90#, PH-6 Hydril Type, Non-Hardbanded | 2 7/8" | PH-6 | 7.90 lbs/ft | P-110 | N | 3.438" | 2.265" | 4,375 ft/lbs | ||
| Tubing, 2 7/8" S-135, 7.90#, PH-6 Hydril Type, Hardbanded | 2 7/8" | PH-6 | 7.90 lbs/ft | S-135 | Y | 3.438" | 2.265" | 4,375 ft/lbs | ||
| Tubing, 2 7/8" S-135, 7.90#, PH-6 Hydril Type, Non-Hardbanded | 2 7/8" | PH-6 | 7.90 lbs/ft | S-135 | N | 3.438" | 2.265" | 4,375 ft/lbs | ||
| Tubing, 2 7/8" T-95, 7.90#, PH-6 Hydril Type, Non-Hardbanded | 2 7/8" | PH-6 | 7.90 lbs/ft | T-95 | N | 3.438" | 2.265" | 3,750 ft/lbs | ||
| Tubing, 2 7/8” P110, 9.50#, PH-6 Hydril Type, Hardbanded | 2 7/8" | PH-6 | 9.50 lbs/ft | P-110 | Y | 3.625” | 2.130” | 6,875 ft/lbs | 231,889 lbs | |
| Tubing, 3 1/2" P-110, 9.30#, 8RD | 3 1/2" | 8RD | 9.30 lbs/ft | P-110 | N | 4.180" | 2.992" | 5,290 ft/lbs | 227,920 lbs | |
| Tubing, 3 1/2" P-110, 12.95#, PH-6 Hydril Type | 3 1/2" | PH-6 | 12.95 lbs/ft | P-110 | N | 4.313" | 2.687" | 8,750 ft/lbs | 324,000 lbs | |
| Tubing, 4 1/2" P-110, 15.50#, PH-6 Hydril Type | 4 1/2" | PH-6 | 15.50 lbs/ft | P-110 | N | 5.125" | 3.765" | 9,375 ft/lbs | 388,000 lbs |
