Blow-Out Preventers
Patterson offers a large inventory of rental Blow-Out Preventers (BOP’s) and other Well Control Equipment, many of which are Certified. All equipment is maintained, inspected & chart recorded as applicable per our ISO9001 quality management system, along with following API and OEM guidelines including Patterson’s specifications and requirements. We offer services to all major Operators, Drilling contractors and Service companies. Primary manufacturer is Cameron, Hydril, Shaffer & Bowen
- RAM Type: Sizes; 3 1/16” – 21 1/4”; Pressures: 5,000 – 20,000 PSI
- (Note: Available, Certified BOP’s upon request.)
- Annular: Sizes; 2 9/16” – 29 1/2”; Pressures; 500 – 10,000 PSI
- (Note: Available, Certified Annulars upon request.)
* Above list does not include all tools, please contact Patterson for items currently not listed.
Specs Sheet
| BOP Description | BOP Type | Pressure | Connection | Outlets | Bonnet Type | Connection (Ring Gasket) | Outlets (Ring Gasket) | Length (Approx) | Height (Approx) | Weight (Approx) Lbs (STD Bonnet) | Weight (Approx) Lbs (LB Bonnet) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BOP, Single, 3 1/16" 20K | Bowen | 20,000 psi | Flanged Top & Bottom | 2 1/16" 20K Studded | Standard & LB Bonnets | BX-154 | BX-152 | 70.57" | 32.12" | 2,050 lbs | |
| BOP, Single, 4 1/16" 15K | Bowen | 15,000 psi | Flanged Top & Bottom | 2 1/16" 15K Studded | Standard & LB Bonnets | BX-155 | BX-152 | 79.76" | 28.25" | 2,050 lbs | |
| BOP, Single, 4 1/16" 20K | Bowen | 20,000 psi | Flanged Top & Bottom | 2 1/16" 20K Flanged | LB Bonnets | BX-155 | BX-152 | 88.63" | 35.56" | 6,700 lbs | |
| BOP, Single, 7 1/16" 5K | Type U | 5,000 psi | Flanged Top & Bottom | 2 1/16" 5K Flanged | Standard & LB Bonnets | R/RX-46 | R/RX-24 | 74.00" | 27.50" | 2,800 lbs | 3,380 lbs |
| BOP, Single, 7 1/16" 10K | Type U | 10,000 psi | Flanged Top & Bottom | 2 1/16" 10K Flanged | Standard & LB Bonnets | BX-156 | BX-152 | 74.00" | 30.56" | 3,550 lbs | 4,130 lbs |
| BOP, Single, 7 1/16" 15K | Type U | 15,000 psi | Flanged Top & Bottom | 2 1/16" 15K Flanged | Standard & LB Bonnets | BX-156 | BX-152 | 74.00" | 31.82" | 4,100 lbs | 4,680 lbs |
| BOP, Single, 11" 5K | Type U | 5,000 psi | Flanged Top & Bottom | 4 1/16" 5K Flanged | Standard & LB Bonnets | R/RX-54 | R/RX-39 | 96.25" | 34.32" | 5,600 lbs | |
| BOP, Single, 11" 10K | Type U | 10,000 psi | Flanged Top & Bottom | 4 1/16" 10K Flanged | Standard & LB Bonnets | BX-158 | BX-155 | 96.25" | 35.69" | 6,400 lbs | 7,650 lbs |
| BOP, Single, 11" 15K | Type U | 15,000 psi | Flanged Top & Bottom | 4 1/16" 15K Flanged | Standard & LB Bonnets | BX-158 | BX-155 | 124.00" | 44.81" | 10,300 lbs | 11,980 lbs |
| BOP, Single, 13 5/8" 5K | Type U | 5,000 psi | Flanged Top & Bottom | 4 1/16" 5K Flanged | Standard & LB Bonnets | BX-160 | R/RX-39 | 112.125" | 33.812" | 7,700 lbs | 9,800 lbs |
| BOP, Single, 13 5/8" 10K | Type U | 10,000 psi | Flanged Top & Bottom | 4 1/16" 10K Flanged | Standard & LB Bonnets | BX-159 | BX-155 | 153.625" | 41.688" | 10,300 lbs | 12,400 lbs |
| BOP, Single, 13 5/8" 10K | Type U | 10,000 psi | STD Top & FLG Bottom | 4 1/16" 10K Flanged | Standard & LB Bonnets | BX-159 | BX-155 | 153.625" | |||
| BOP, Single, 13 5/8" 15K | Type U | 15,000 psi | Flanged Top & Bottom | 4 1/16" 15K Flanged | Standard & LB Bonnets | BX-159 | BX-155 | 139.00" | 53.688" | 23,700 lbs | 25,100 lbs |
| BOP, Single, 16 3/4" 5K | Type U | 5,000 psi | Flanged Top & Bottom | 4 1/16" 5K Flanged | Standard & LB Bonnets | BX-162 | R/RX-39 | 129.25" | 43.062" | 13,750 lbs | 15,850 lbs |
| BOP, Single, 21 1/4" 5K | Type U | 5,000 psi | Flanged Top & Bottom | 4 1/16" 5K Flanged | Standard & LB Bonnets | BX-165 | R/RX-39 | 164.25" | 50.94" | 30,000 lbs | 34,200 lbs |
| BOP Description | BOP Type | Pressure | Connection | Outlets | Bonnet Type | Connection (Ring Gasket) | Outlets (Ring Gasket) | Length (Approx) | Height (Approx) | Weight (Approx) Lbs (STD Bonnet) | Weight (Approx) Lbs (LB Bonnet) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BOP, Double, 4 1/16" 15K | Bowen | 15,000 psi | STD Top & FLG Bottom | 2 1/16" 15K Studded | Standard & LB Bonnets | BX-155 | BX-152 | 79.76" | 39.71" | 3,489 lbs | |
| BOP, Double, 7 1/16" 5K | T81 / Townsend | 5,000psi | STD Top & Bottom | (2) 2 1/16" 5K STD Outlets | Standard Bonnets | R/RX-46 | R/RX-24 | 65.00" | 20.50" | 2,800 lbs | |
| BOP, Double, 7 1/16" 5K | Type U | 5,000 psi | Flanged Top & Bottom | 2 1/16" 5K Flanged | Standard & LB Bonnets | R/RX-46 | R/RX-24 | 74.00" | 44.188" | 5,200 lbs | 5,780 lbs |
| BOP, Double, 7 1/16" 10K | Type U | 10,000 psi | Flanged Top & Bottom | 2 1/16" 10K Flanged | Standard & LB Bonnets | BX-156 | BX-152 | 74.00" | 48.625" | 6,400 lbs | 6,980 lbs |
| BOP, Double, 7 1/16" 15K | Type U | 15,000 psi | Flanged Top & Bottom | 2 1/16" 15K Flanged | Standard & LB Bonnets | BX-156 | BX-152 | 74.00" | 49.875" | 6,750 lbs | 7,330 lbs |
| BOP, Double, 11" 5K | Type U | 5,000 psi | Flanged Top & Bottom | 4 1/16" 5K Flanged | Standard & LB Bonnets | R/RX-54 | R/RX-39 | 96.25" | 54.50" | 10,200 lbs | |
| BOP, Double, 11" 10K | Type U | 10,000 psi | Flanged Top & Bottom | 4 1/16" 10K Flanged | Standard & LB Bonnets | BX-158 | BX-155 | 96.25" | 55.875" | 11,300 lbs | 12,545 lbs |
| BOP, Double, 11" 15K | Type U | 15,000 psi | Flanged Top & Bottom | 4 1/16" 15K Flanged | Standard & LB Bonnets | BX-158 | BX-155 | 124.00" | 69.75" | 18,400 lbs | 20,100 lbs |
| BOP, Double, 13 5/8" 5K | Type U | 5,000 psi | Flanged Top & Bottom | 4 1/16" 5K Flanged | Standard & LB Bonnets | BX-160 | R/RX-39 | 112.125" | 55.875" | 14,800 lbs | 16,900 lbs |
| BOP, Double, 13 5/8" 10K | Type U | 10,000 psi | Flanged Top & Bottom | 4 1/16" 10K Flanged | Standard & LB Bonnets | BX-159 | BX-155 | 153.625" | 66.625" | 18,400 lbs | 20,500 lbs |
| BOP, Double, 13 5/8" 10K | Type U | 10,000 psi | STD Top & FLG Bottom | 4 1/16" 10K Flanged | Standard & LB Bonnets | BX-159 | BX-155 | 153.625" | |||
| BOP, Double, 13 5/8" 15K | Type U | 15,000 psi | Flanged Top & Bottom | 4 1/16" 15K Flanged | Standard & LB Bonnets | BX-159 | BX-155 | 139.00" | 81.75" | 43,250 lbs | 44,650 lbs |
| BOP, Double, 16 3/4" 5K | Type U | 5,000 psi | Flanged Top & Bottom | 4 1/16" 5K Flanged | Standard & LB Bonnets | BX-162 | R/RX-39 | 129.25" | 68.875" | 26,940 lbs | 29,040 lbs |
| BOP Description | BOP Type | Pressure | Connection | Top (Ring Gasket) | Bottom (Ring Gasket) | Dia (Approx) | Height (Approx) | Weight (Approx) Lbs |
|---|---|---|---|---|---|---|---|---|
| BOP, Annular, 4 1/16" 10K | Shaffer Spherical | 10,000 psi | STD Top & FLG Bottom | BX-155 | BX-155 | 23.00" | 25.50" | 1,850 lbs |
| BOP, Annular, 4 1/16" 10K | Hydril GKS | 10,000 psi | STD Top & FLG Bottom | BX-155 | BX-155 | 35.17" | 25.25" | 2,650 lbs |
| BOP, Annular, 7 1/16" 5k | Shaffer Spherical | 5,000 psi | STD Top & FLG Bottom | R/RX-46 | R/RX-46 | 29.00" | 30.88" | 3,175 lbs |
| BOP, Annular, 7 1/16" 5k | Hydril GK | 5,000 psi | STD Top & FLG Bottom | R/RX-46 | R/RX-46 | 35.75" | 36.875" | 4.000 lbs |
| BOP, Annular, 11" 5K | Shaffer Spherical | 5,000 psi | STD Top & FLG Bottom | R/RX-54 | R/RX-54 | 44.75" | 41.50" | 9,550 lbs |
| BOP, Annular, 11" 5K | Hydril GK | 5,000 psi | STD Top & FLG Bottom | R/RX-54 | R/RX-54 | 44.25" | 47.8125" | 8,200 lbs |
| BOP, Annular, 11" 10K | Hydril GK | 10,000 psi | STD Top & FLG Bottom | BX-158 | BX-158 | 61.50" | 63.50" | 26,140 lbs |
| BOP, Annular, 13 5/8" 5K | Cameron T90 | 5,000 psi | STD Top & FLG Bottom | BX-160 | BX-160 | |||
| BOP, Annular, 13 5/8" 5K | Shaffer Spherical | 5,000 psi | STD Top & FLG Bottom | BX-160 | BX-160 | |||
| BOP, Annular, 13 5/8" 5K | Hydril GK | 5,000 psi | STD Top & FLG Bottom | BX-160 | BX-160 | 52.25" | 54.125" | 13,800 lbs |
| BOP, Annular, 13 5/8" 10K | Hydril GK | 10,000 psi | STD Top & Bottom | BX-160 | BX-160 | 68.125" | 60.625" | 32,850 lbs |
| BOP, Annular, 13 5/8" 10K | T3 Wedge Cover | 10,000 psi | STD Top & 15K FLG Bottom | BX-159 | BX-159 | 64.50" | 62.49" | 33,275 lbs |
| BOP, Annular, 16 3/4" 3K | Hydril GK | 3,000 psi | STD Top & FLG Bottom | R/RX-66 | R/RX-66 | 55.50" | 53.875" | 14,868 lbs |
| BOP, Annular, 16 3/4" 5K | Hydril GK | 5,000 psi | STD Top & FLG Bottom | BX-162 | BX-162 | 59.50" | 61.25" | 20,835 lbs |
| BOP, Annular, 21 1/4" 2K | Axon Type 52 | 2,000 psi | STD Top & FLG Bottom | R/RX-73 | R/RX-73 | 49.00" | 46.65" | 12,000 lbs |
| BOP, Annular, 21 1/4" 2K | Hydril MSP | 2,000 psi | STD Top & FLG Bottom | R/RX-73 | R/RX-73 | 58.75" | 52.50" | 15,100 lbs |

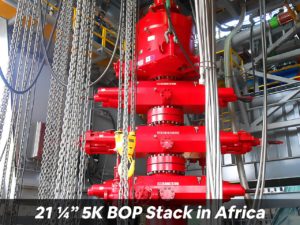

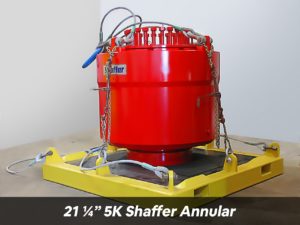

| BOP, Annular, 21 1/4" 5K | Shaffer Spherical | 5,000 psi | STD Top & FLG Bottom | BX-165 | BX-165 | 71.00" | 66.00" | 44,500 lbs |
| BOP, Annular, 29 1/2" 500psi | Hydril MSP | 500 psi | STD Top & FLG Bottom | R/RX-95 | R/RX-95 | 82.50" | 67.81" | 24,500 lbs |
